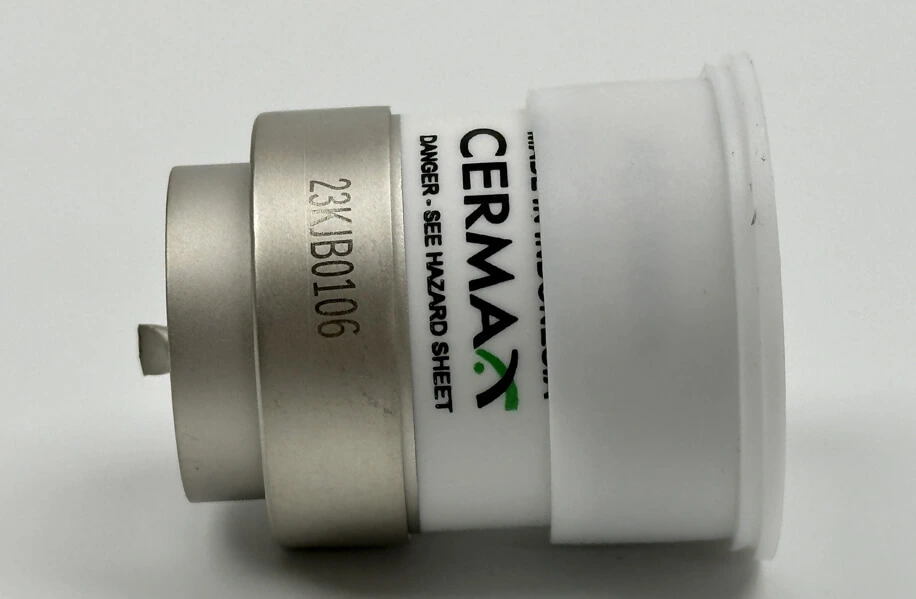

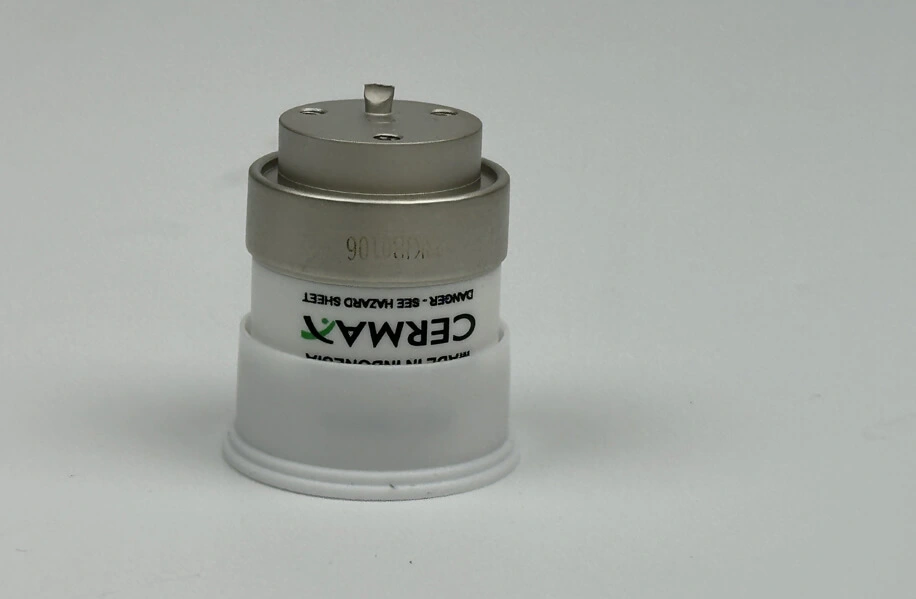

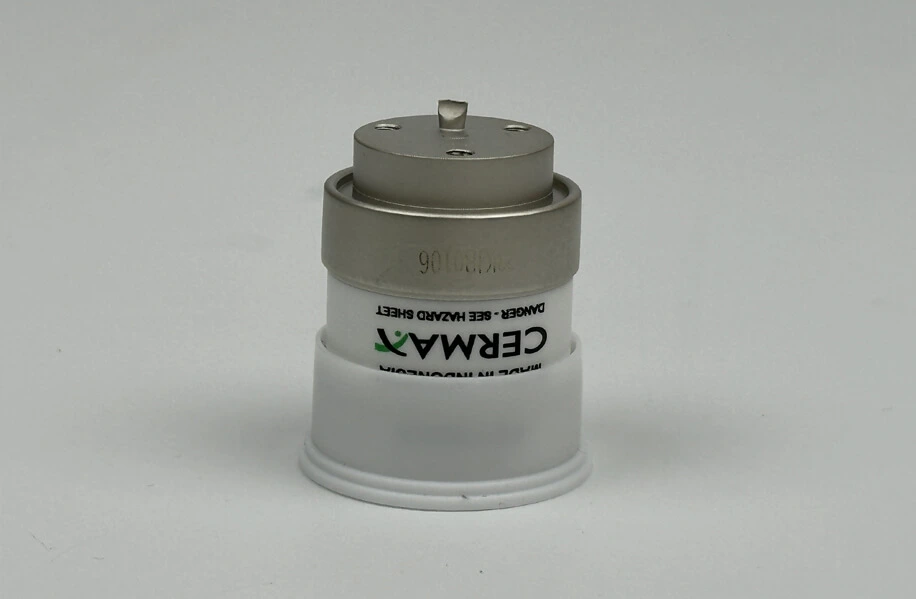

Lamp Xenon PE175BFA

The 175 Watt Cermax® Xenon lamp is well suited for designs that do not require the high intensity associated with its 300 Watt sibling. Featuring the same robust design synonymous with the Cermax family, this lamp provides a broad spectral output and the ability for the user to tune its output with catalog filters to match their desired spectral requirements.


Get A Quote
  • pe175bfa
  • lamp xenon pe175bfa company
  • lamp xenon pe175bfa manufacturer
  • lamp xenon pe175bfa supplier
  • pe175bfa
  • lamp xenon pe175bfa company
  • lamp xenon pe175bfa manufacturer
  • lamp xenon pe175bfa supplier

Specification of Lamp Xenon PE175BFA

Reflector Type:

Parabolic

Body Type:

Ceramic

Total Visible Output:

2200 Lumens

Power - Nominal:

175 Watts

Power - Range:

150-200 Watts

Current - Nominal:

14 Amps (DC)

Current - Range:

12-16 Amps (DC)

Ignition Voltage:

23-35 kilovolts (system dependent)

Operating Voltage - Nominal:

12.5 Volts (DC)

Operating Voltage - Range:

11-14 Volts (DC)

Lifetime:

1000 hours typical

Temperature:

150 °C (maximum)

Radiant Output:

25 Watts

UV Output (<390 nm):

1.2 Watts

IR Output (>770 nm):

14 Watts
