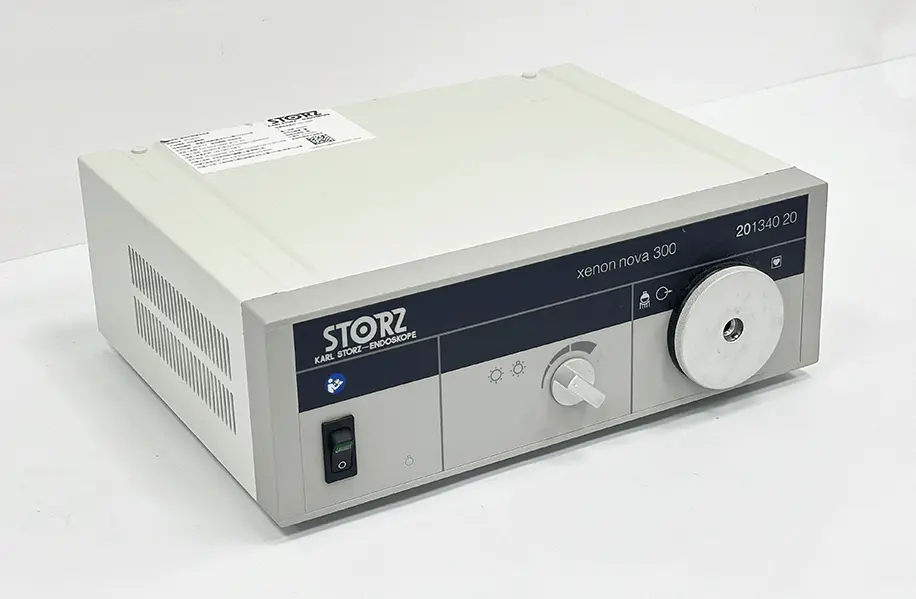

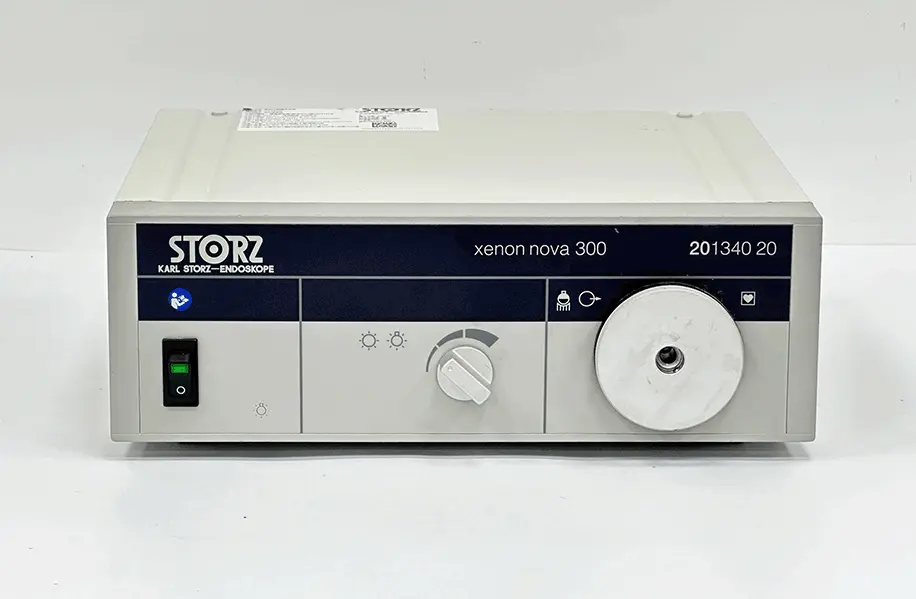

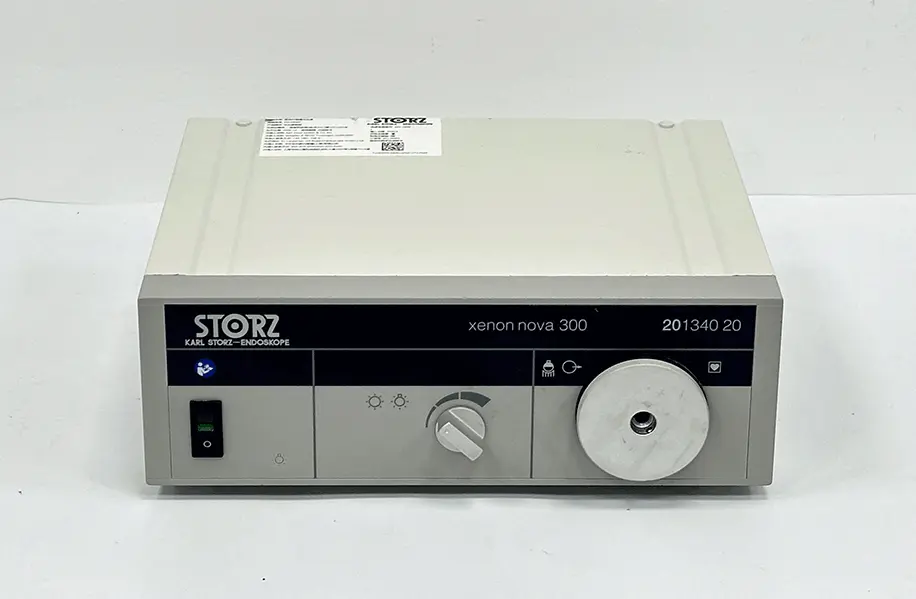

Endoscopic Light Source STORZ 20134020

The STORZ 20134020 Endoscopic Light Source is a cutting-edge solution for optimal illumination in medical procedures. With advanced features, it delivers consistent brightness, ensuring clear visualization during endoscopic interventions. Compact and user-friendly, this light source is designed to enhance precision and efficiency in diverse medical settings, providing reliable illumination.

Get A Quote
  • storz 20134020 led light source for endoscope
  • storz endoscope led 20134020
  • storz endoscopic light source 20134020
  • storz endoscopy light 20134020
  • storz 20134020 led light source for endoscope
  • storz endoscope led 20134020
  • storz endoscopic light source 20134020
  • storz endoscopy light 20134020

Parameter of Endoscopic Light Source STORZ 20134020

XENON NOVA° 300  201340 20

Supply voltage

100 VAC ... 125 VAC / 220 VAC ... 240 VAC,±10%

Power frequency

50 Hz ... 60 Hz

Power consumption

700 VA3 / 450 VA

Power fuses3

2 X T 3.15 AL / 250 V   (220 VAC ... 240 VAC)

2 X T 6.3 AL / 250 V    (100 VAC ... 125 VAC)

Power fuses4

2 x T 2.5 AL / 250 V    (220 VAC ... 240 VAC)

2 x T 5.0 AL / 250 V    (100 VAC ... 125 VAC)

Lamp type

Xenon lamp, 300 W

Lamp voltage

14 VDC (nominal)

amp current

21 A, 土2 A

Wattage

300 W (nominal

Color temperature

6000 K (initial)

Operating temperature

10°C ... 40 °C     (50 F ... 104°F)

Dimensions (w x h x d)

305 mm x 101 mm x 240 mm

Weight

4.0 kg

Storage and transport conditions

Storage temperature

-10°C ... 60°C    (14°F ... 140°F)

Humidity

5% ... 95%, rel. humidity, non-condensing

Atmospheric pressure

500 hPa ... 1080 hPa
