STORZ Insufflator UI500 Maintenance Case

Repair Case

STORZ Insufflator UI500

2025 / REPAIR

The STORZ UI500 Insufflator, a high-performance medical device designed for scenarios like laparoscopic surgery, is a reliable Storz CO2 insufflator that ensures precise gas delivery and optimal surgical conditions.

Product Introduction

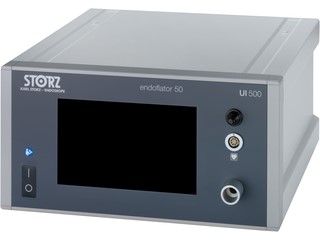

• Brand and Model: STORZ UI500




• Main Function: Pressurizes and insufflates gas into the abdominal cavity, elevates the anterior abdominal wall, and provides sufficient operational and visual space for surgical treatment.

UI500

Product Features

Ease of Operation

Adjustable settings through a touchscreen, meeting the needs of patients in various situations, with support and guidance from a trusted endoscopy equipment supplier to ensure optimal performance and reliability.

Safety Assurances

• Pediatric Mode: Offers safer pressure limits (maximum 15mmHg) and flow limits (maximum 15 liters per minute), suitable for pediatric surgeries.




• SECUVENT Safety System: Ensures stable insufflation pressure and automatically releases excess pressure if it becomes too high.

Heating Module

Increases surgical comfort, reduces endoscope fogging, and provides better surgical visibility, especially when used with a reliable CO2 insufflator for endoscopy to maintain optimal insufflation throughout the procedure.

Integration with Integrated OR

Can be integrated into an integrated operating room through the SCB device control system.

Repair Case

Insufflator

• Exterior Inspection: Checking for intact exterior of the main unit, with no signs of obvious physical damage.

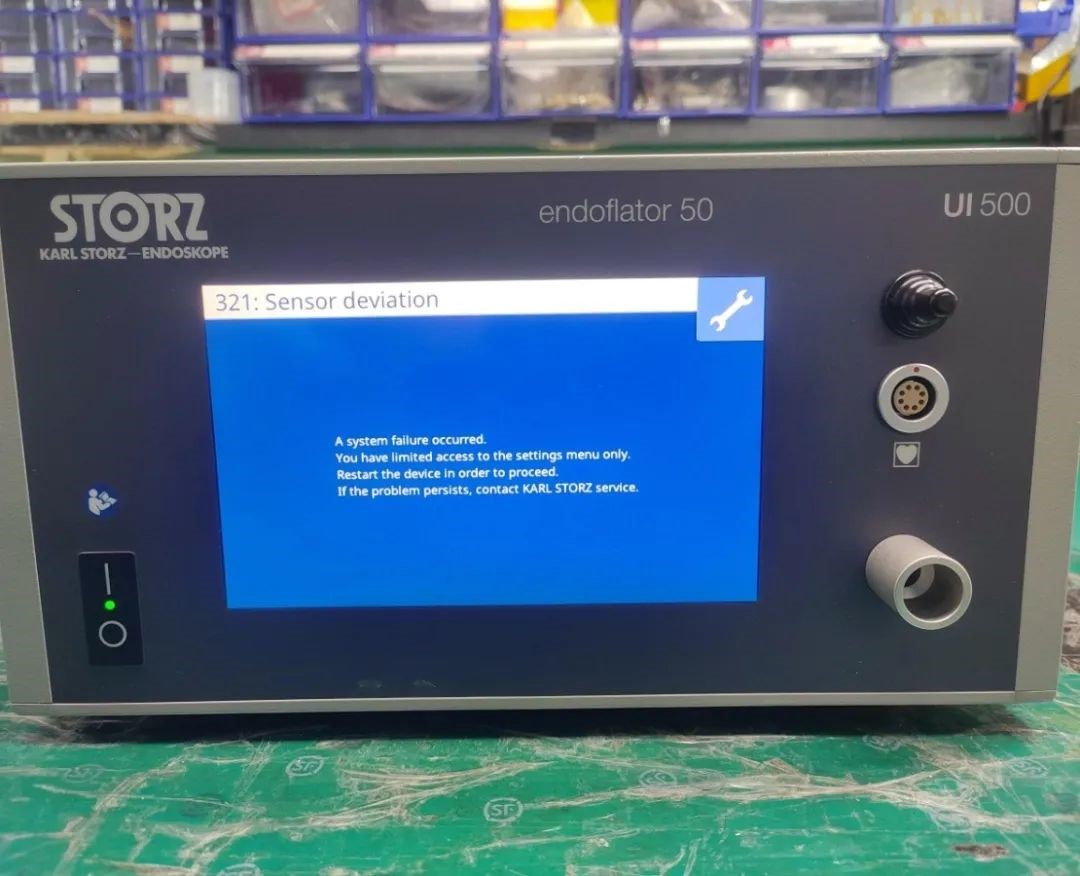

• Safety Assurance: Power-on test, error code 321 reported.

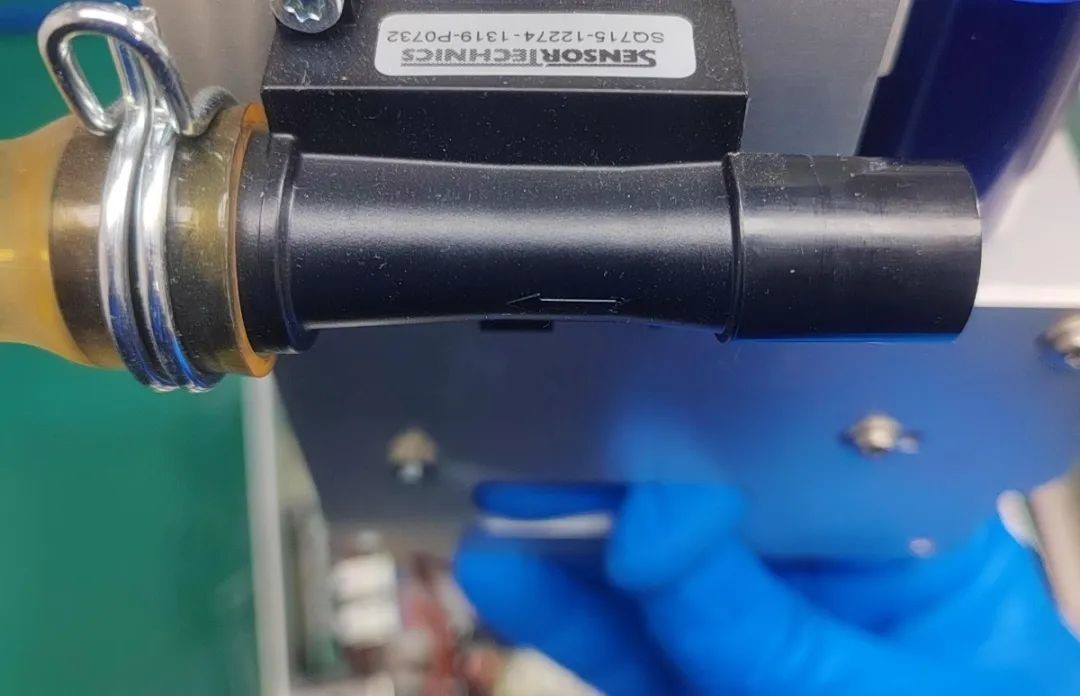

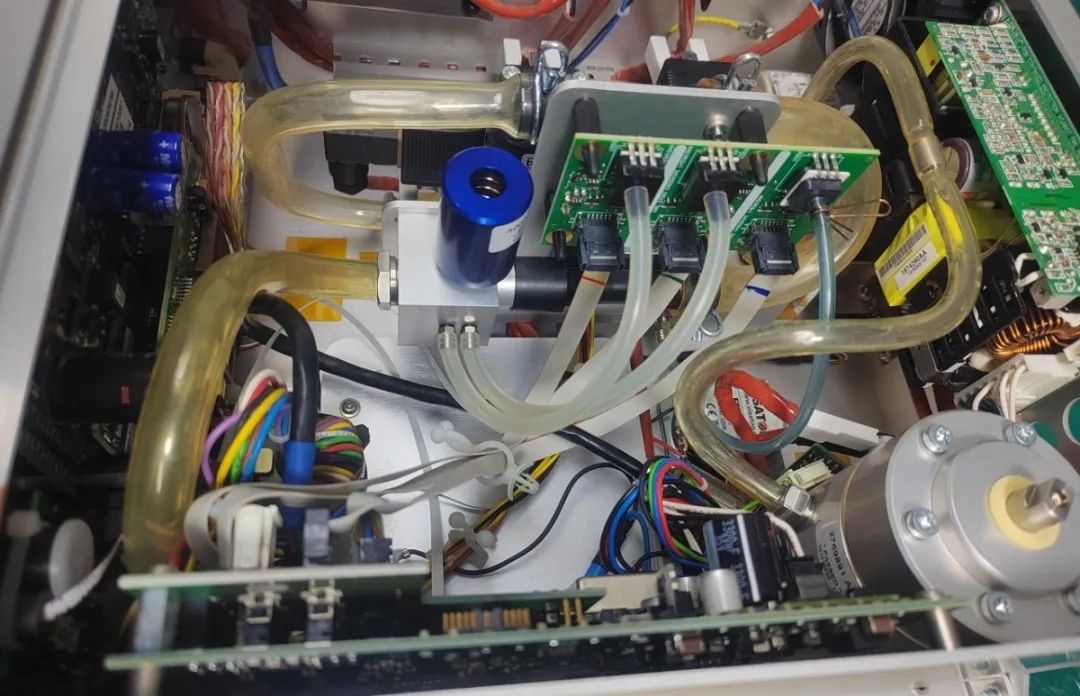

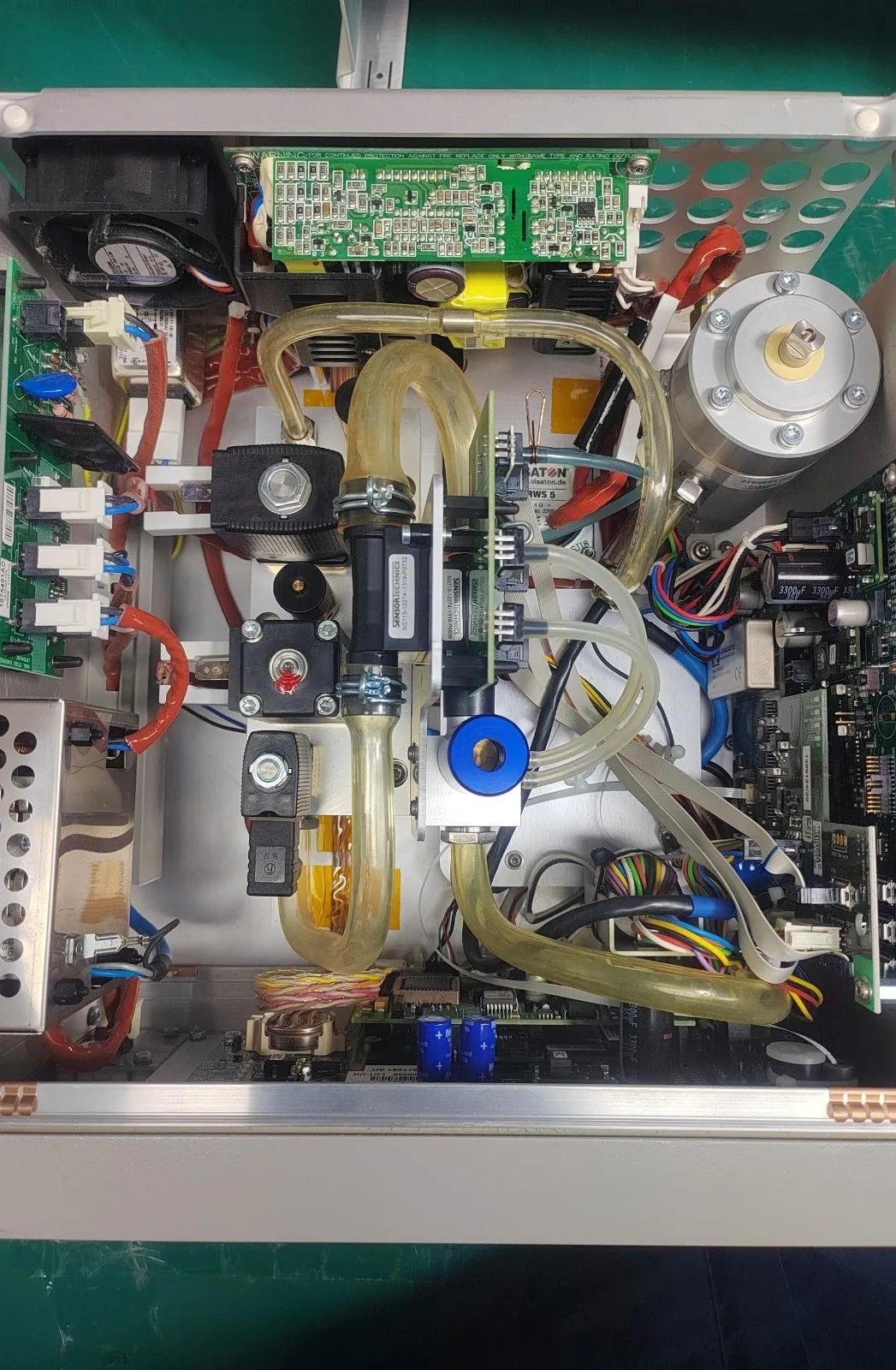

• Disassembly Inspection: Testing revealed the damage was due to contamination of the flow sensor with oil and foreign matter.




• Repair Plan: First, replace two flow sensors. Second, clean the pipelines and calibrate the overall parameters.
