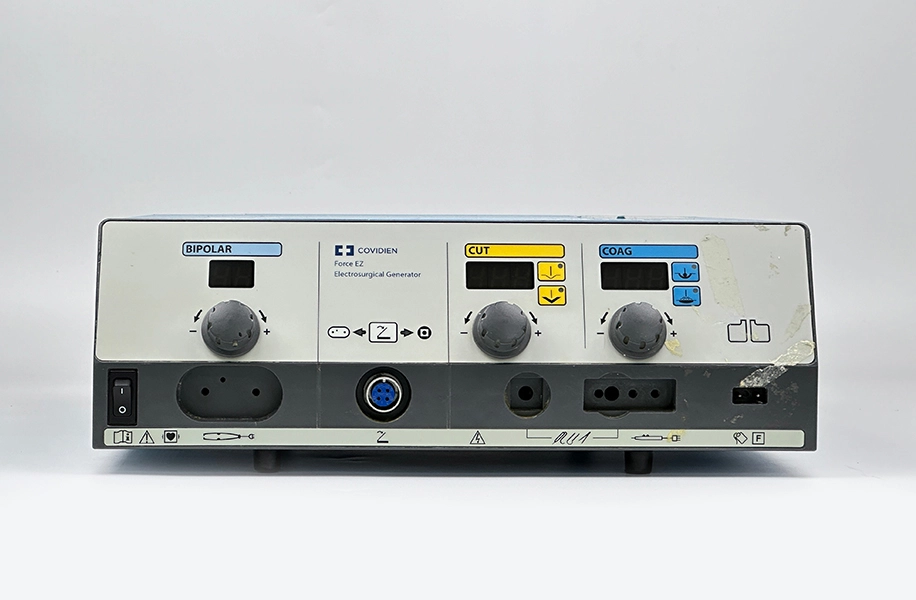

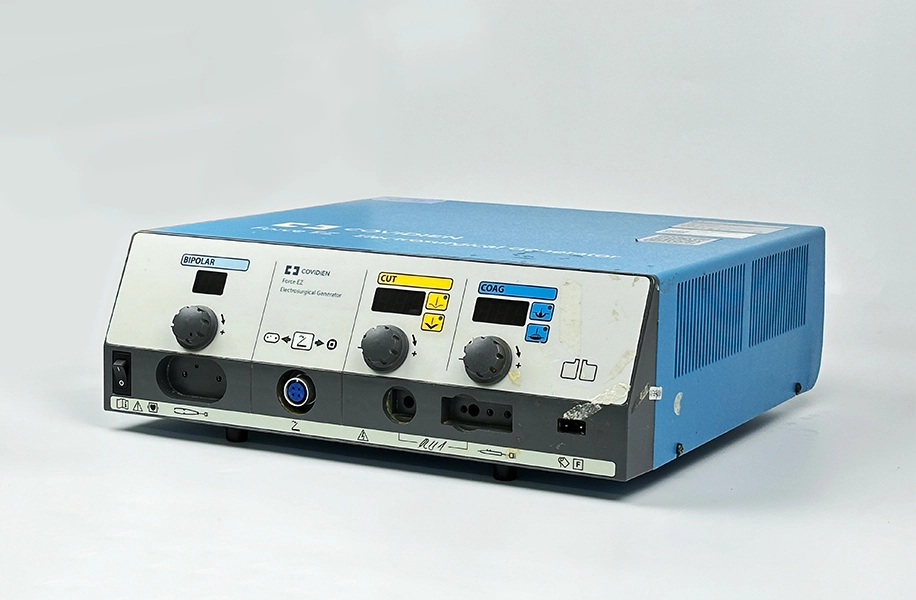

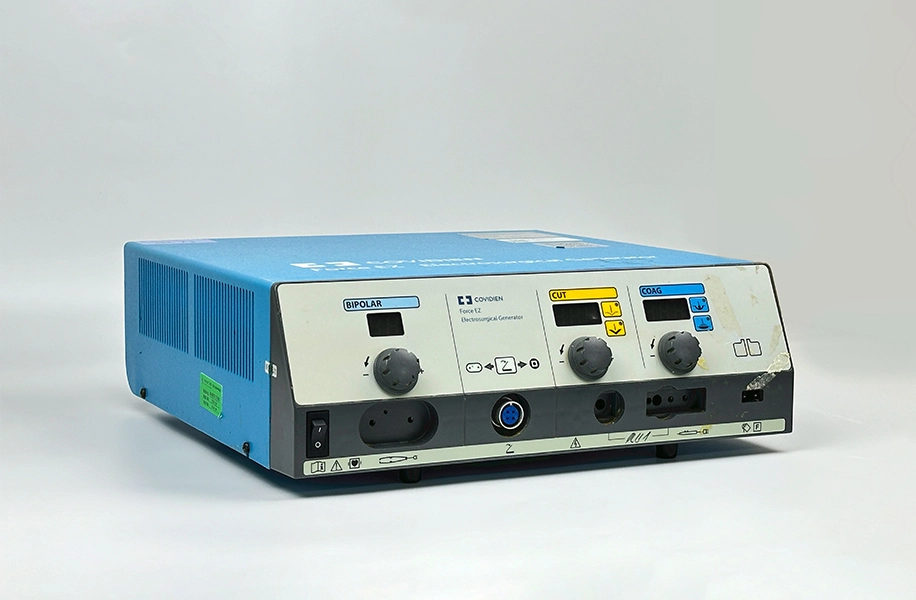

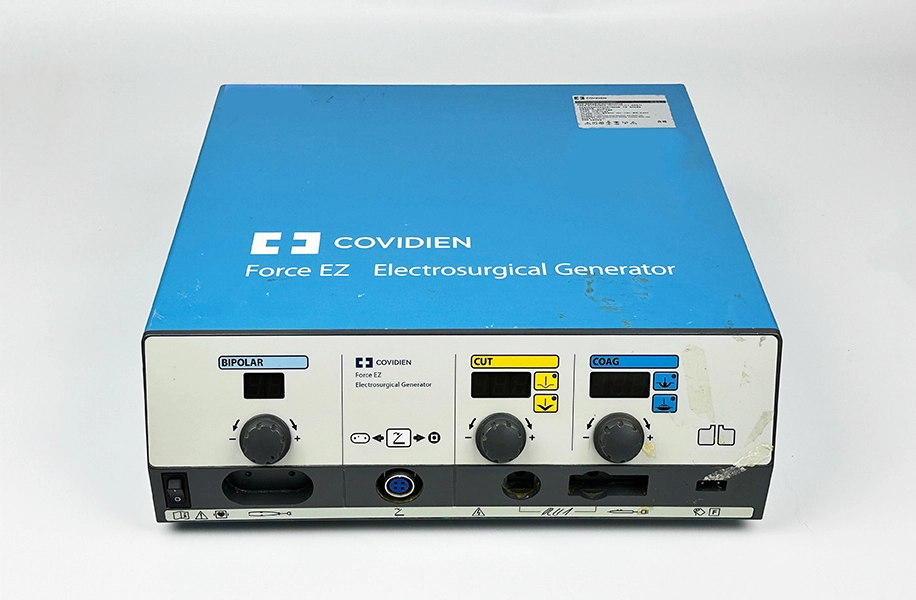

Electrosurgical Unit Valleylab FORCE EZ-8C

Force EZ™ Electrosurgical Generator with Instant Response™ Technology;
Instant Response technology provides surgeons with improved performance or lower power settings, minimizing the risk of tissue damage and neuromuscular stimulation, and decreasing the need to "turn up the generator."


Get A Quote
  • valleylab force ez
  • electrosurgical apparatus
  • electrosurgical machine
  • electrosurgical equipment
  • valleylab force ez
  • electrosurgical apparatus
  • electrosurgical machine
  • electrosurgical equipment

Technical Specifications of Electrosurgical Unit Valleylab FORCE EZ-8C

Output Waveforms

Bipolar

470 kHz sinusoid

Monopolar Cut

Pure

393 kHz sinusoid

Blend

393 kHz bursts ofsinusoid, recurring at 27 kHzintervals. 50% duty cycle envelope


Monopolar Coag


Desiccation


Low 1

240+40 kHz sinusoidrecurring at 39 kHz. 8% dutycycle

Low 2

393 kHz sinusoid

Low 3

393 kHz sinusoid

Fulguration


High 1

470 ± 40 kHz dampedsinusoidal bursts with a

repetition frequency of 57 kHz


High 2

470 ± 40 kHz dampedsinusoidal bursts with a

repetition frequency of 30 kHz


Output power changes byless than 15% or 5 watts,whichever is greater, as the line voltage varies from 90-135volts (into a 300 ohm load).


Dimensions and Weight

Width

40.6 cm (16 in.)

Depth

39.5 cm (15.6 in.)

Height

12.7 cm (5 in.)

Weight

< 6.8 kg (< 15 lbs)
