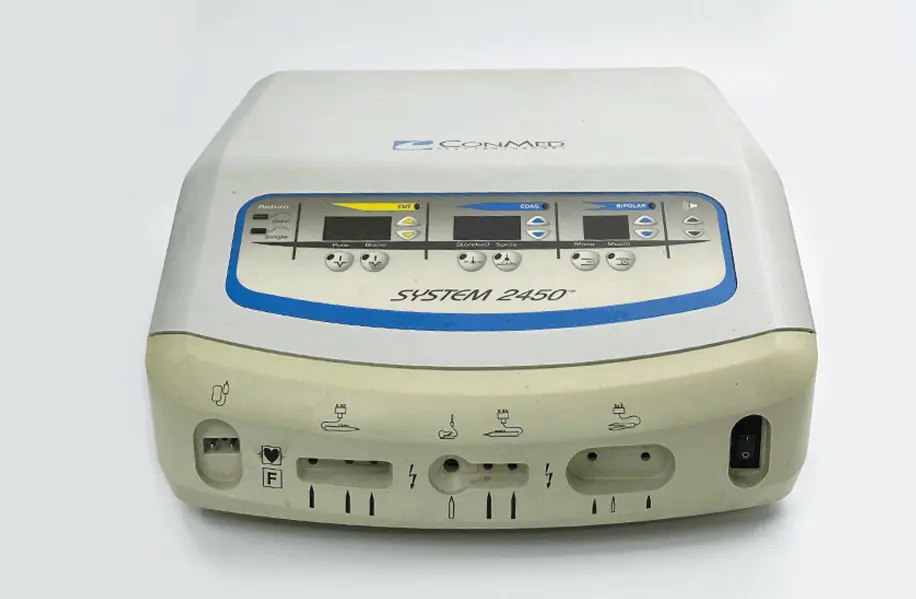

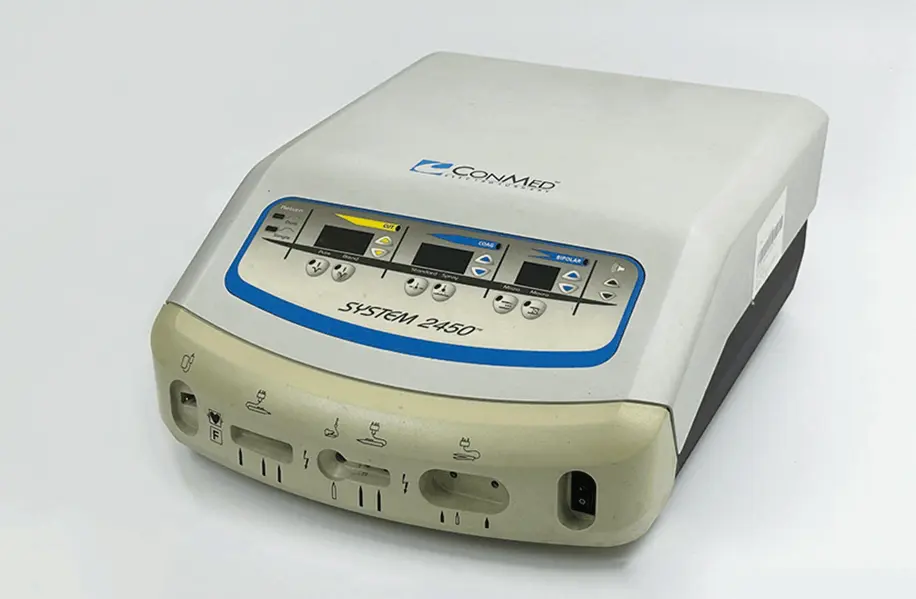

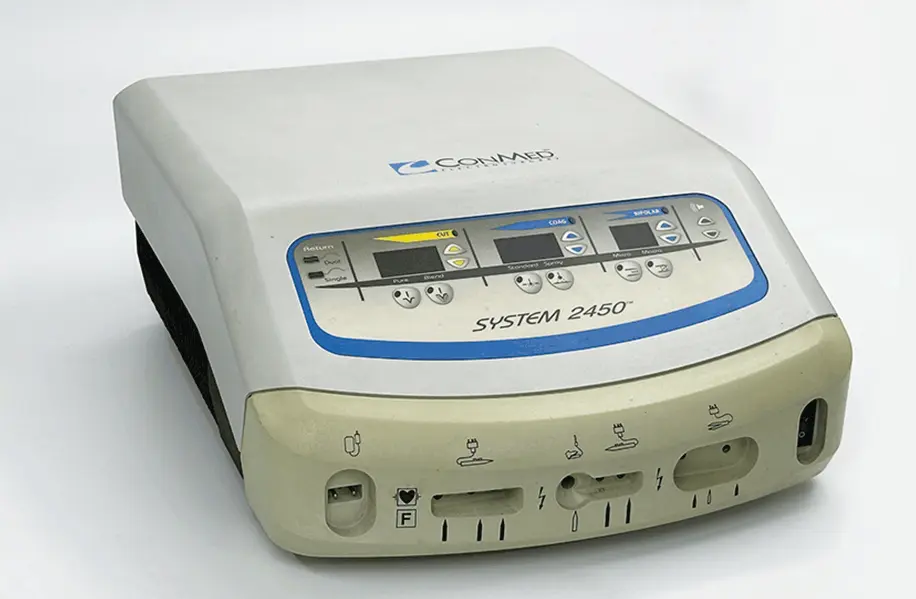

Electrosurgical Unit CONMED SYSTEM 2450

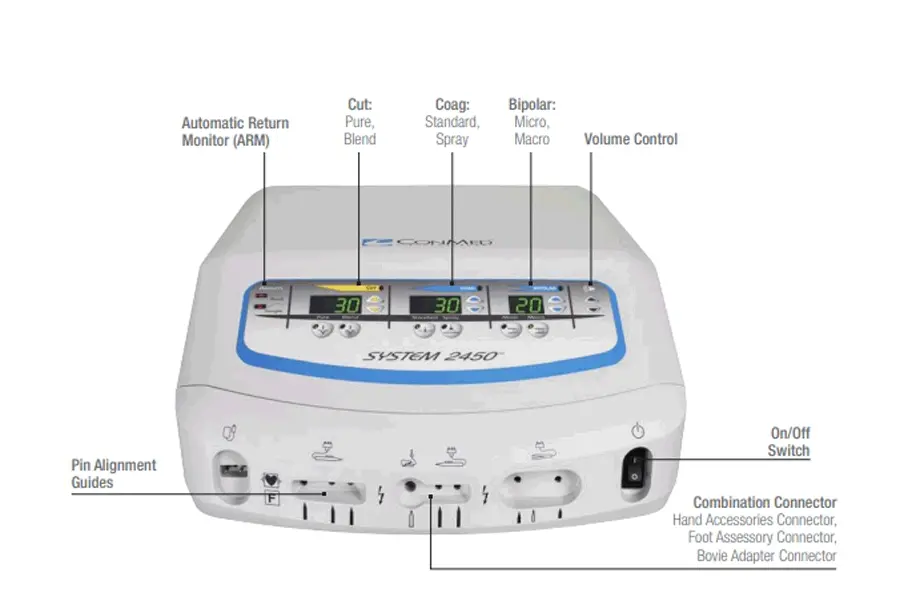

– Smooth cutting through different tissue types, offering both Pure Cut for scalpel-like cuts and Blend for hemostasis while cutting

– Coagulation for both dissection and hemostasis. Choose either Standard Coag for dissection with hemostasis or Spray Coag for broader hemostasis

– Precise bipolar dessication provides efficient dessication with minimal lateral thermal tissue damage. Choose between Micro for fine and precise coagulation, and Macro for energy intensive coagulation

– Automatic programming restores the System 2450 to the last settings used

– One handswitch/footswitch combination jack and a separate handswitch jack allows for connection of multiple accessories

– Serial interface port enables advanced communications between the System 2450 and compatible robotic surgical systems or OR integration systems

Get A Quote
  • conmed system 2450
  • system 2450 conmed
  • conmed 2450
  • surgical cautery machine conmed system2450
  • conmed system 2450
  • system 2450 conmed
  • conmed 2450
  • surgical cautery machine conmed system2450

Electrosurgical Unit CONMED System 2450™ Specification

Output Characteristics (Maximum Output)

Gross F

Maximum output

Fixed Load(Ω)

Representative of 7L and F79 I (50W eye)

Maximum positive displacement (C-7)

Transmission Wave Number(KHz)

Pure stomach cutting

300W

500Ω

1.4~2.0

1100V

390-410

Mixed Purging

200W

500Ω

2.0-2.6

1200V

390-410

Coagulation

120W

500Ω

5.6--6.6

3200V

485-505

Coagulation

80W

500Ω

7.5-9.5

4400V

485-505

Coagulation

70W

50Ω

1.4-2.0

150V

390-410

Coagulation

70W

300Ω

1.4--2.0

560V

390-410



Input Force Characteristics (Output Force Maximum Setting Load 500Ω)

Power supply

100V AC±10% 50/60Hz

Current

8.4A (CUT max.)

Power consumption

840VA



High frequency leakage current

Mode

Scalpel tip electrode - ground

Monopolar incision and coagulation

<100mA



General

Form of protection against electric shock

Class I equipment

Degree of protection against electric shock

CF type

Drip-proof

Drip-proof type

Internal design

Solid state

Output method

Floating type

Cooling method

Natural heat dissipation type (without fan)

Dimensions


Width

37cm

Depth

48cm *including handle

Height

18cm

Weight

14.5kg

Mains power overcurrent protection

Fuse 10.0A*Two type T fuses are used, high interrupting

Alarm volume

65db (min.)

Output volume

45db (min.)

Operating conditions

10°C to 30°C, 95% relative humidity

Duty cycle

15 sec ON / 30 sec OFF
