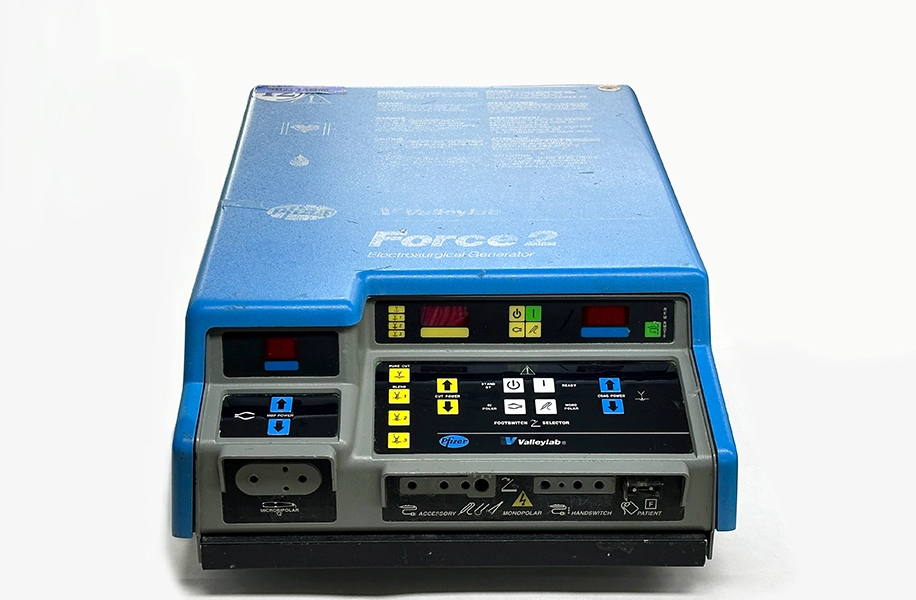

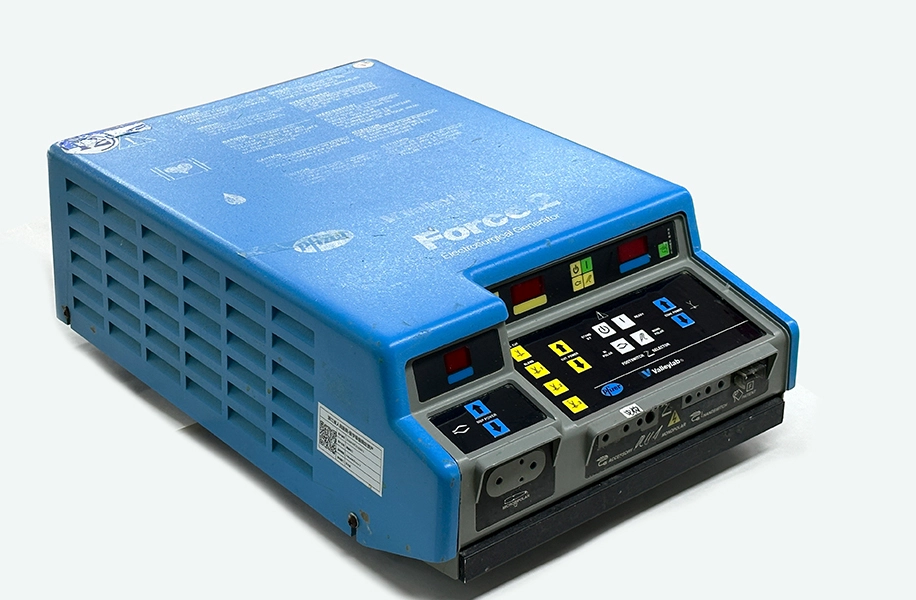

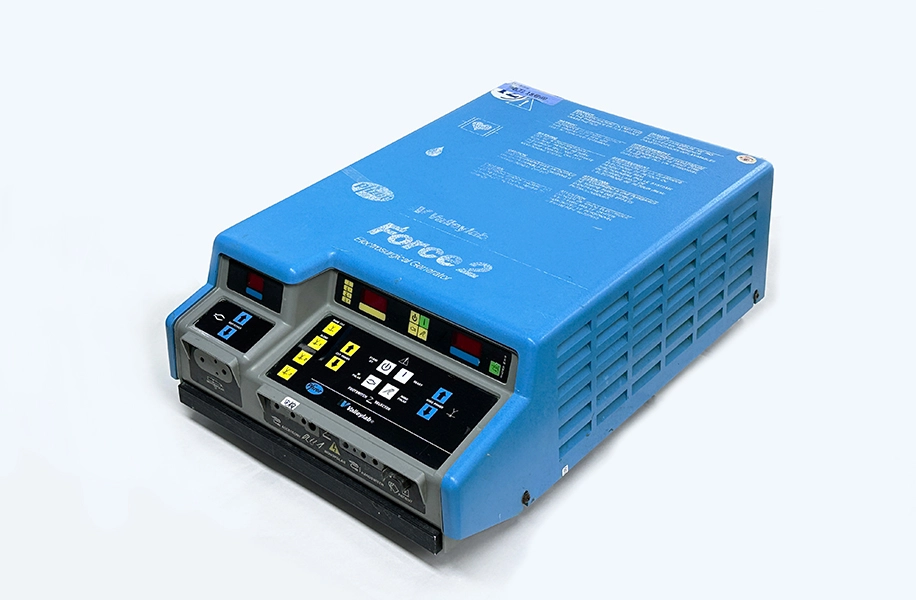

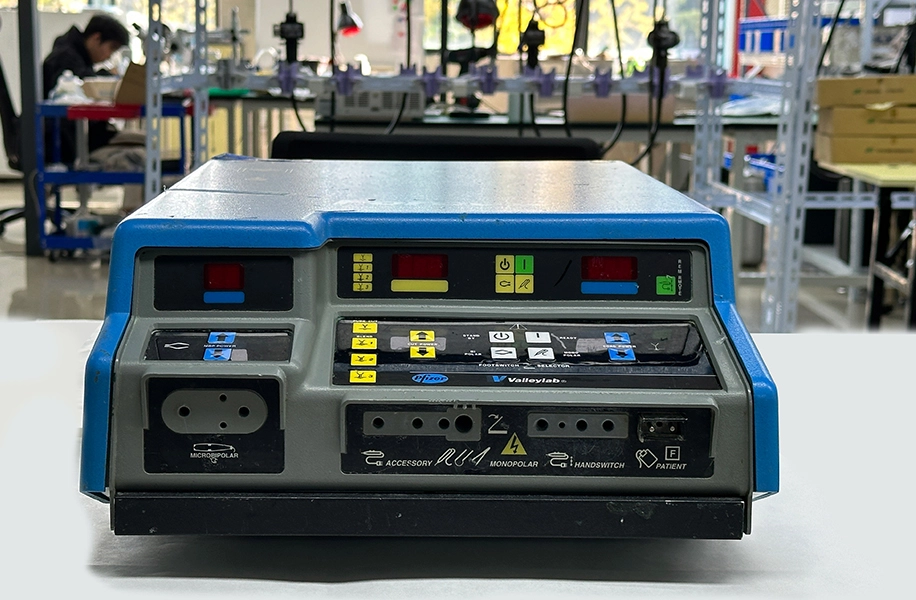

Electrosurgical Unit Valleylab FORCE2-8PCH

The Valleylab FORCE2-8PCH Electrosurgical Unit is a cutting-edge generator designed for precision in surgical applications, operating seamlessly at 220-240 Vac, 50-60 Hz. Its diverse output waveforms, including cut, blend, coagulation, low volt coagulation, and bipolar, offer surgical versatility. The unit's 510 kHz sinusoidal bursts with variable duty cycles ensure optimal tissue interaction. Operating within a temperature range of 10°C to 40°C and a humidity range of 30% to 75%, it adapts to varied surgical environments. With atmospheric pressure compatibility from 500 to 1060 millibar, this electrosurgical unit ensures reliability and performance in diverse clinical settings.

Get A Quote
  • force 2 valleylab electrosurgical generator
  • force 2 valleylab electrosurgical devices
  • electrosurgical analyzer
  • force 2 valleylab 8pch
  • force 2 valleylab electrosurgical generator
  • force 2 valleylab electrosurgical devices
  • electrosurgical analyzer
  • force 2 valleylab 8pch

Basic Information of Electrosurgical Unit Valleylab FORCE2-8PCH

The Force 2-8 PCH Electrosurgical Generator is designed to operate at 220-240 Vac nominal, 50-60 Hz.


Output Waveform


Cut

510 kHz sinusoid

Blend 1

510 kHz bursts of sinusoid at 50% duty cyclerecurring at 31 kHz

Blend 2

510 kHz bursts of sinusoid at 37.5% duty cyclerecurring at 31 kHz

Blend 3

510 kHz bursts of sinusoid at 25% duty cycle recurring at 31 kHz


Coag

510 kHz damped sinusoidal bursts with arepetition frequency of 31 kHz

Low Volt Coag

510 kHz bursts of sinusoid at 25% duty cyclerecurring at 31 kHz

Bipolar

510 kHz sinusoid, unmodulated



Operating Parameters

Temperature Range

10° C (50° F) to 40° C (104° F)

Humidity Range

30 to 75%,noncondensing

Atmospheric Pressure

500 to 1060 millibar
